Contact us today for a quotation.
| |
Industrial Infrared and Convection Heaters, Ovens, and Furnaces
Call (865) 574-9784 to speak to an application
engineer.
Email us at info@infraredheating.com
|

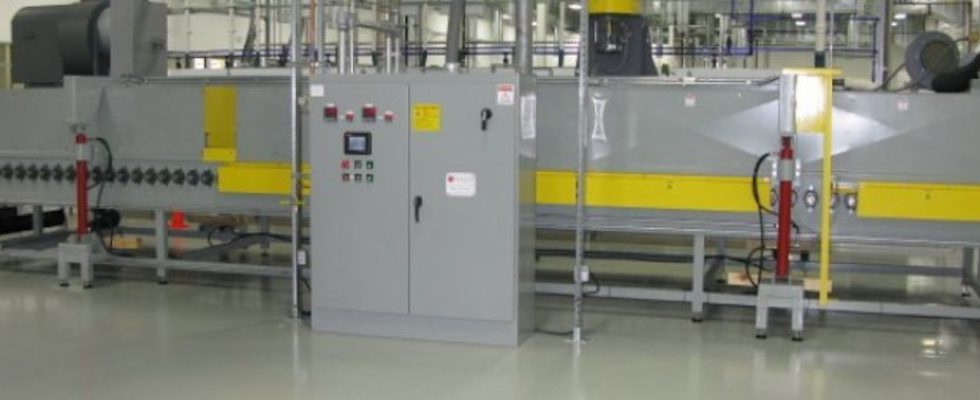

Solar Glass Processing System
 LEFT:
INFRARED/CONVECTION CONVEYOR OVEN AND COOLER processing glass
panels for solar application.
The glass panel processing oven,
cooler, and control system implements medium quartz tube heating elements
and plug style re-circulation blowers for infrared and convective
combination heating. The entire system is of a clamshell design and
includes an automated hydraulic lift system for opening the hearth
of the oven. Controls are PLC with HMI touch screen.
|
|

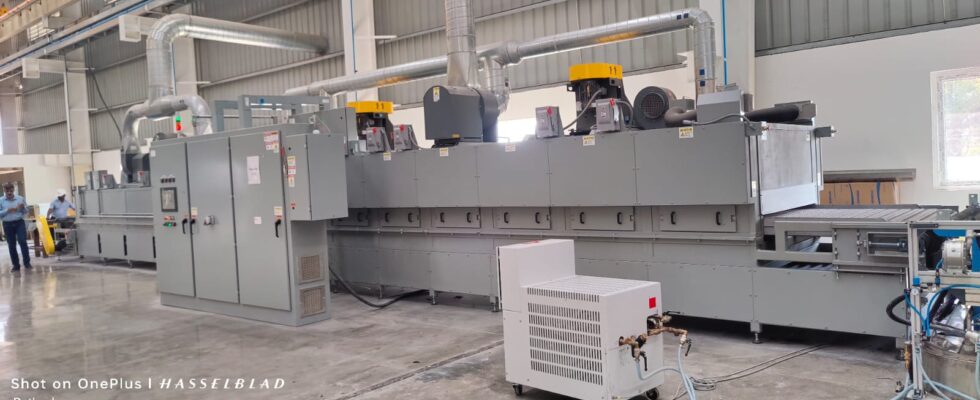

Stator Lamination Line
 LEFT:

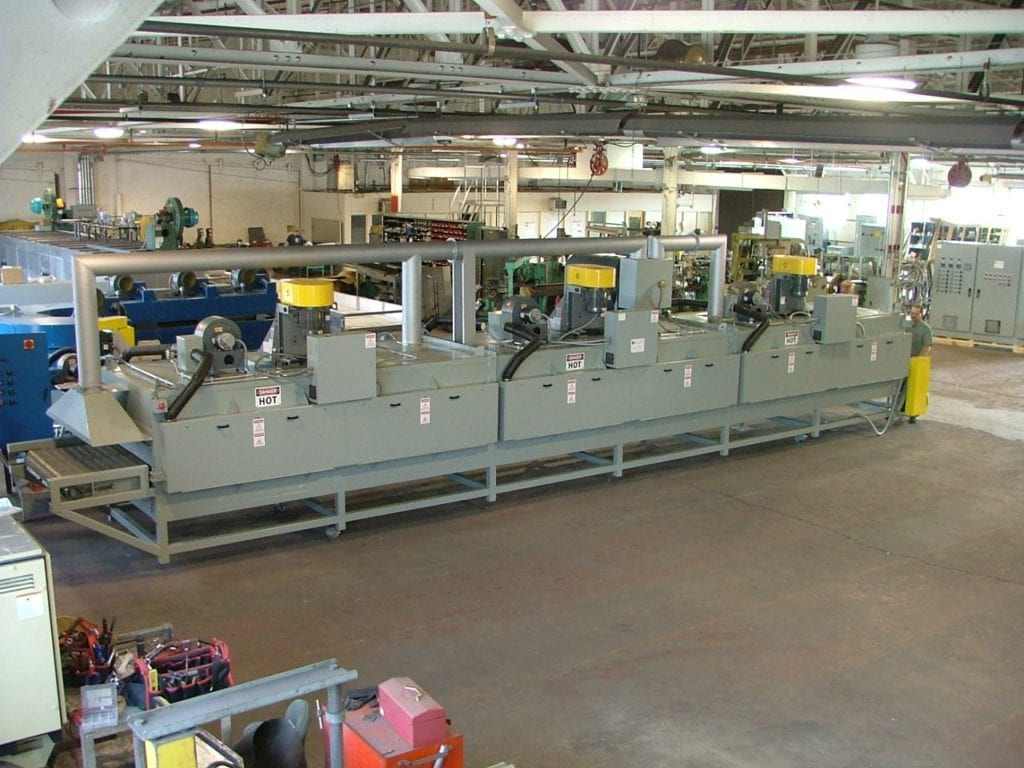

INFRARED/CONVECTION CONVEYOR OVEN AND COOLER curing dielectric
coatings on generator stator plate laminations.
This stator lamination cure oven,
cooler, and control system implements infrared heating elements and
re-circulation blowers for infrared and convective heating. The system consists
of three independently controlled heat zones, a cool zone, and two
independently controlled conveyor systems. Systems are available
in both electric infrared and gas convection.
|
|

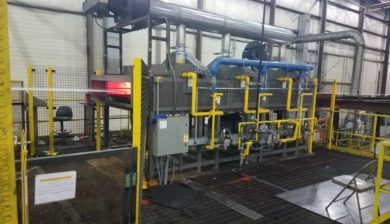

Aluminum Alloy Processing Furnace
 LEFT:
HIGH TEMPERATURE CONVECTION CONVEYOR FURNACE processing rolled aluminum
alloy sheet.
The pictured system is of a high
temperature gas fired convection furnace with controls. The furnace heat
source is gas-fired convection only and does not include any flame
impingement within the hearth. The system has a temperature capability of
1,100 deg F and includes a staging conveyor with pneumatically actuated
load and unload doors.
|
|

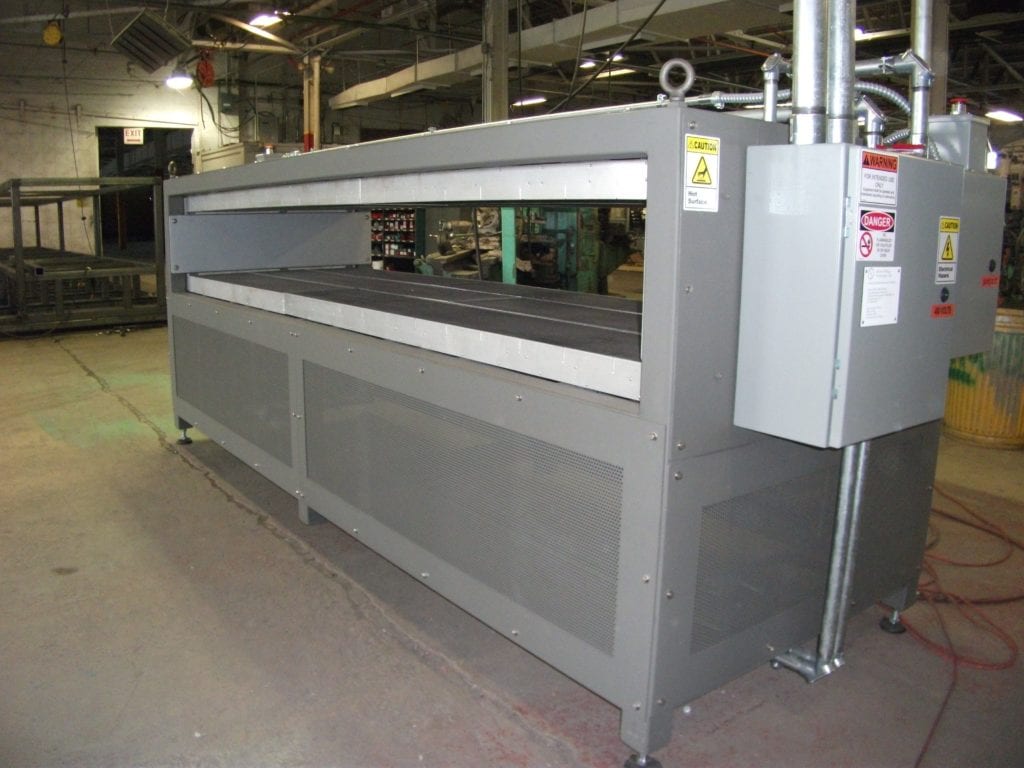

Infrared
Tunnel Oven
 LEFT:
INFRARED TUNNEL OVEN curing powder coated steel parts. The
pictured system implements short wave tungsten halogen quartz infrared
heating elements for high radiant heating efficiency and controllability.
This industrial
tunnel oven would
be perfectly suited as a cure oven, powder coat oven, preheating oven, annealing oven, heat treat oven, or industrial drying oven boosting current processes and much more.
|
|
Infrared/Convection
Conveyor Oven
LEFT:
CONVECTION STAGING CONVEYOR PRE-HEAT OVEN
for processing automotive dashboards. Convection oven applications
include preheating, drying, curing, and more.
|

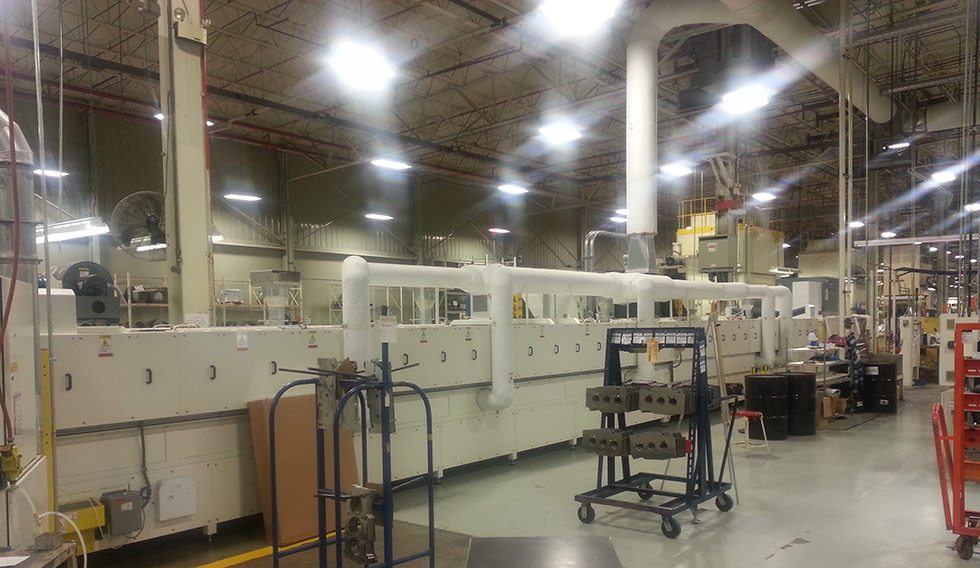

Infrared
Conveyor Belt Oven
 LEFT:

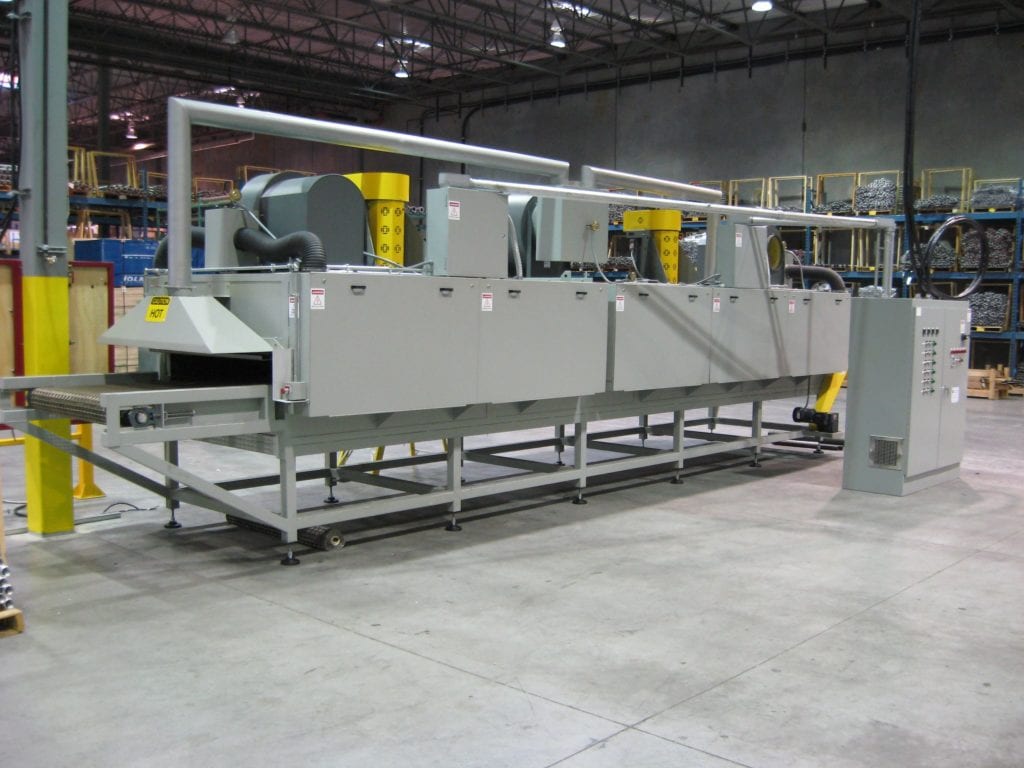

INFRARED CONVEYOR OVEN AND COOLER designed for heat cure processing
automotive brake friction material. Infrared conveyor oven applications include
curing, preheating, drying, soldering, stress relieving, annealing, and much
more.
|
|
Mission Statement:
Infrared Heating Technologies' mission is to develop the best possible solutions to your heat processing, automation, and machine build needs.
What We Do: Infrared Heating Technologies designs and manufactures standard and custom thermal processing systems for a variety of applications. Systems include electric infrared batch ovens, electric IR conveyor ovens, gas catalytic infrared ovens, infrared/convection combination ovens, tunnel ovens, infrared cure ovens, infrared dryers, silicon carbide clamshell furnaces, and other thermal processing systems for a broad range of industrial and laboratory applications.
Who We Are: Located in a 30,000 sq. ft. facility in East Tennessee that includes full sheet metal, machining, welding, electrical panel fabrication, CAD design, and test facilities, Infrared Heating Technologies is a custom
oven, heater, and furnace manufacturer offering complete turn-key solutions to heat processing needs.
Our Product: Infrared Heating Technologies'
heater, infrared oven, and furnace systems are designed and manufactured to solve your heat processing problem while exceeding the highest industrial standards for machine building. Infrared oven engineers work with you, the customer, from original concept to CAD electrical and mechanical drawings to fabrication and final testing / run-off. We are not satisfied until you are satisfied. CALL FOR A NO-OBLIGATION PROCESS ASSESSMENT.
Call (865) 574-9784 to speak to an application
engineer.
Email us at info@infraredheating.com
|
|
Gas Fired Batch Ovens
GAS FIRED BATCH OVENS
feature high velocity air impingement for fast and efficient
convective heating.
|
Gas Fired Infrared Tunnel Oven
 GAS
FIRED INFRARED
OVEN applications include
drying, preheating,
annealing, stress relieving, boosting current processes and much more.
|
|
Infrared
Car Bottom Oven
INFRARED CAR
BOTTOM OVEN applications include
die heating, preheating,
annealing, stress relieving, and much more.
|
Infrared
On-Line Heater

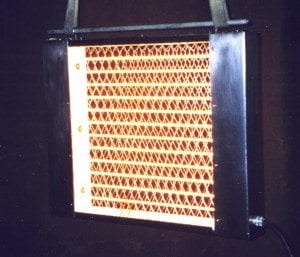

INFRARED ON-LINE HEATER applications include
drying, preheating,
annealing, stress relieving, boosting current processes and much more.
|
|

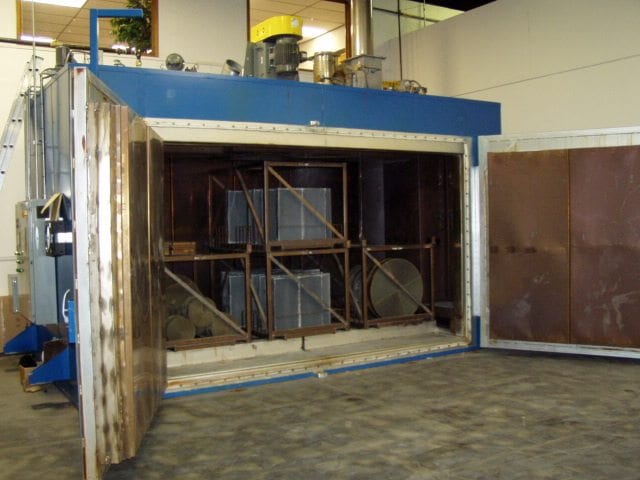

Electric Batch Oven
BATCH
OVEN utilizing rod over-bend electric heating elements, a re-circulation
plug blower, and an automated hydraulic lift system. Application is flattening
of aluminum rolled sheet. |
Gas Fired Infrared Oven
 GAS
FIRED INFRARED CONVEYOR OVEN includes four zones of temperature control, a four
strand chain conveyor, and is rated for 2.0 MBTU/HR. |
|
Infrared Tunnel Oven
INFRARED CLAMSHELL
TUNNEL OVEN Application is curing primer on aluminum and steel
60" wide strip at production throughput rates up to 400 feet per minute. |
Infrared/Convection Conveyor Oven

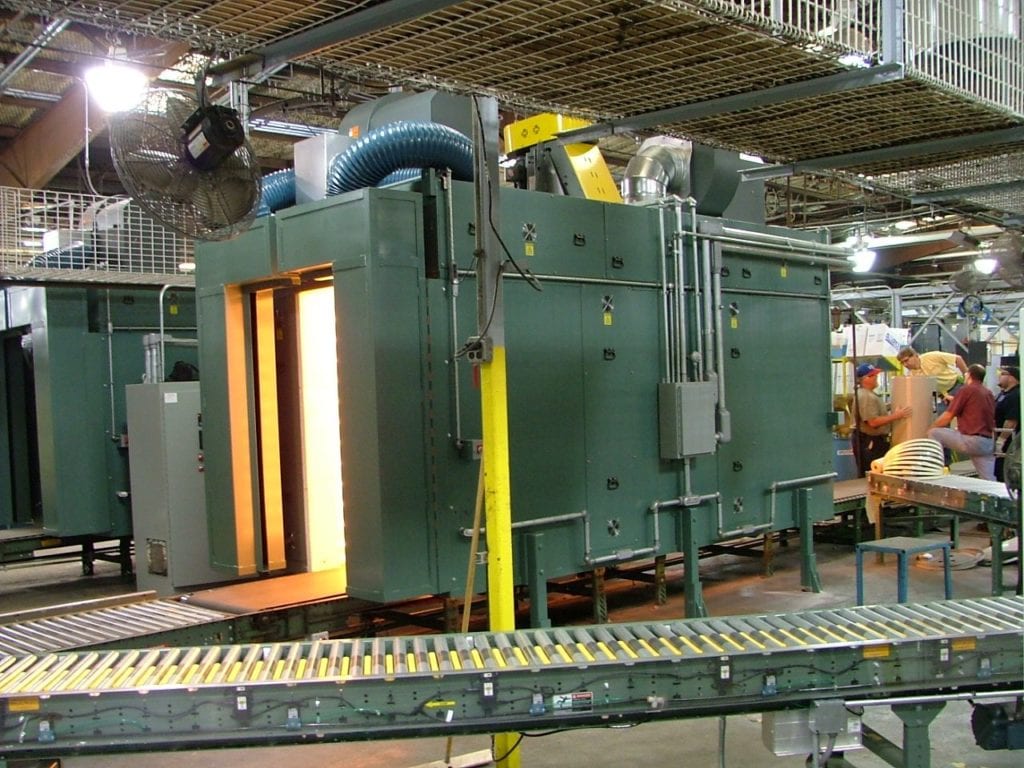

INFRARED/CONVECTION
CONVEYOR OVEN Application is solder flow and brazing.
|
